EVERLITE R74
Product Description
ALSYNITE EVERLITE R74
is a high quality general purpose FRP that has been the cornerstone of
Alsynite's fibreglass business for many years. Both the exposed and the
underside surfaces are protected by a surface coating films produced by
world renowned film makers.
This proven system is backed by a 10 years performance warranty. Available is a wide range of profiles, ALSYNITE EVERLITE R74 is the sensible choice for cost effective skylight and wall applications.
Key Features
This proven system is backed by a 10 years performance warranty. Available is a wide range of profiles, ALSYNITE EVERLITE R74 is the sensible choice for cost effective skylight and wall applications.
Key Features
- Excellent long term weathering characteristics
- 10 Years warranty *conditions apply
- Non delaminating surface technology
- Outstanding surface erosion resistance
- Superior long term clarity properties
- Industrial and commercial skylights
- Building skylight sidings
- Nursery & retail areas
- Car porch & pergola covers
- Light diffusers
Product Specifications
| Profiles | Due to Alsynite’s global presence, we have an extensive range of profiles within our portfolio that matches most metal sheeting profiles. |
|---|---|
| Sheet Length | Standard sheet lengths up to 11.9 meters. Other non-standard lengths are available subject to special order and shipping parameters. |
| Weights |
|
| Nominal Thickness | 1.2mm, 1.5mm, 2.0mm ± 15% |
| Surface Coating | World renowned improved UV protection film. 20 micron nominal thickness. |
| Colors |
Standard colors of Clear and Opal.
Customized colors are available, subject to minimum order quantities and pigment availability.
The combination of color and weight will affect the amount of light transmitted through the sheet.
|
| Resin System | Advanced general purpose grade orthophthalic polyester. |
| Reinforcement | “E” Class Fibre optic glass, at least 22% |
| Light Transmission | Clear 74%, Opal 58% (Using 2400 gsm 1.5mm sheet) |
| Thermal Conductivity | Clear 72%, Opal 62% (Using 2400 gsm 1.5mm sheet) |
| Heat Distortion Temperature | + 180 to 200 |
| Thermal Expansion | 2.5 x 10-5 cm/cm/°C |
| UV Resistance | Clear 99.9%, Opal 100% |
| PROPERTIES | Tensile Strength | Shear Strength |
|---|---|---|
| TEST VALUE | 94MPa | 90MPa |
| PROPERTIES | Compressive Strength | Barcol Hardness |
| TEST VALUE | 135MPa | > 50 |
Physical Properties
| PROPERTIES | Thermal Expansion (10-5 cm/cm/°C) | Water Absorption(%) |
|---|---|---|
| TEST VALUE | 2.2 | 0.52 to 0.60 |
| PROPERTIES | Heat Distortion Temperature (°C) | Operating Temperatures (°C) |
| TEST VALUE | +180 to 200 | -20 to +95 |
Solar Optical Properties
| PROPERTIES | Diffused Light Transmission (%) | Solar Heat Gain (W/m2 |
|---|---|---|
| CLEAR | 74 | 560 |
| OPAL | 55 | 486 |
| PROPERTIES | Transmittance 380-320nm (UV – A) | Transmittance 320-280nm (UV – B) |
| CLEAR | 0.04 | 0.006 |
| OPAL | - | - |
Results of tests are based on a 2400 gsm sheet.
 |

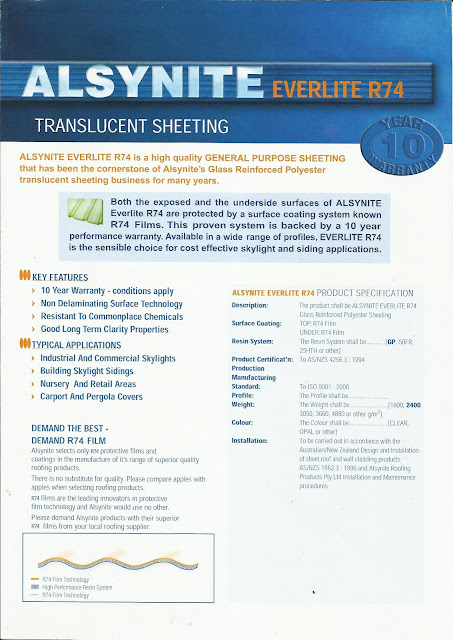

| BROSUR ALSYNITE EVERLITE R74 AtapTranslucent |
